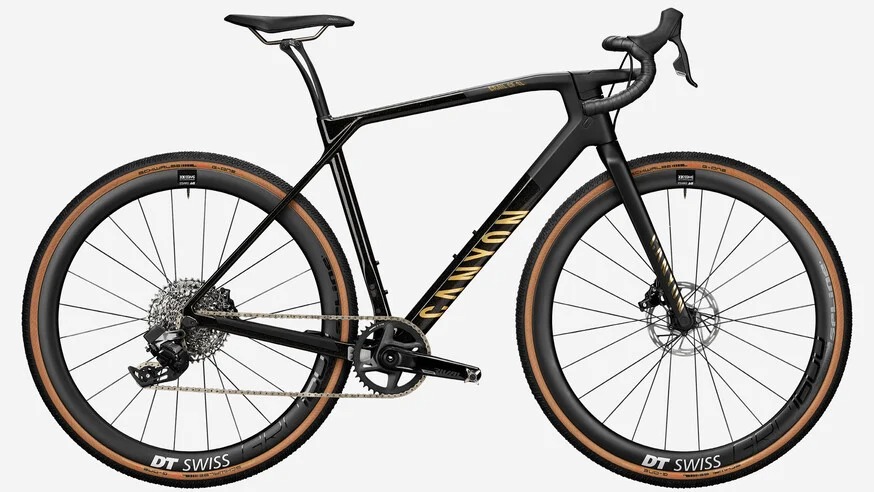

Canyon Grail CF SL 7 Race Gold
Frame
-
Frame
- Canyon Grail CF SL Disc
- Axle dimension: 12×142 mm
- Tyre Clearance: 42 mm
- Material: Carbon (CF)
-
Fork
- Canyon FK0070 CF Disc
- Material: carbon
- Fork dimensions: 1 1/4″
- Axle dimensions: 12 x 100 mm
- Brake type: disc brakes
Drivetrain
-
Battery
- SRAM eTap Powerpack 1BY
- Removable battery for wireless eTap derailleurs.
- Charge time: less than 60 minutes.
-
Rear Derailleur
- SRAM Rival XPLR eTap AXS
- 12-speed rear derailleur, optimised for gravel riding. With spring clutch for precise shifting and excellent chain stability, and larger X-SYNC pulley wheels for greater durability and efficiency.
- Max. cassette size: 44 teeth
-
Cassette
- SRAM Rival XPLR XG-1251, 12-speed, 10-44T
- Gravel-specific 12-speed cassette with X-Range gearing for a larger range with smaller gaps between gears.
- Gear range: 10-44T
-
Crank
- SRAM Rival D1 Wide, 40T
- Number of chainrings: 1
-
Bottom bracket
- SRAM Pressfit DUB Wide
- Pressfit BB compatible with SRAM DUB axles.
- BB-frame interface: 86.5 mm
- Weight: 72 g
-
Chain
- SRAM RIVAL D1 12s
- 12-speed chain with flattop technology for narrower design, quieter operation, and increased strength and durability.
Brakes
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS 2s
- Left-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS 12s
- Right-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
-
Brake Rotor
- SRAM Paceline
- Designed for optimal venting. With rounded edges for easier wheel installs.
- Disc mount: centerlock
- Weight: 155 g
Wheels
-
Wheel
- DT Swiss GRC 1600 Spline
- Rotor mount: Center Lock
-
Wheel
- DT Swiss GRC 1600
- Rotor mount: Center Lock
-
Tyre
- Schwalbe G-One R, 40mm
- High-end gravel race tyres for light gravel and asphalt. Combining incredible smoothness, speed, and control. Technology: tubeless-ready, V-Guard puncture protection.
- Width: 40mm
-
Thru Axle
- Canyon GP0197-01 Thru Axle 100X12
- Axle dimensions: 12 x 100 mm
-
Thru Axle
- Canyon GP0235-01 Thru Axle 142×12
- Axle dimensions: 142 x 12 mm
Cockpit
-
Cockpit
- Canyon CP07 Gravel Cockpit CF
- Material: Carbon (CF)
Seat
-
Saddle
- Fizik Argo Terra X5
- Short-nose, pressure-relieving saddle.
- Shell material: carbon fibre-reinforced nylon.
- Rail material: S-alloy.
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Bag
- Storage box for tools and replacement parts.
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon starter box
- All you need to get riding: Quick Start Guide, manual, torque wrench incl. bit set, assembly paste.
-
Manuals and Accessories
- QSG 006 Cockpit Quick Start Guide
